品牌：SunKun(三昆)

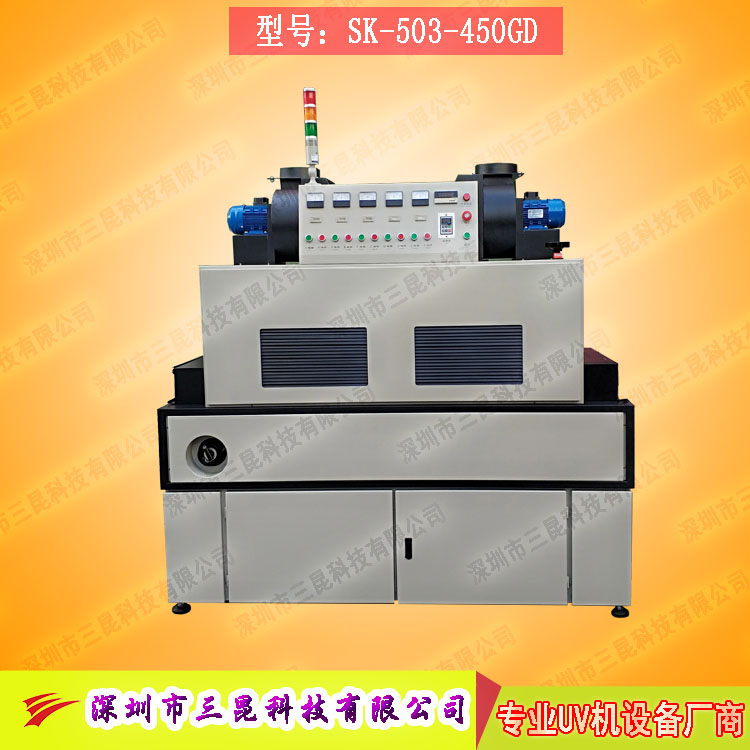

型號：SK-503-450GD

訂購：不限數量

價格：面議

⒈訂購熱線：13823369867(李先生) 1753480168

⒉業務咨詢：13913507139(黃永貴) 2851085006



⒈市場部：13510246266(黃總經理) 289604232

1、UV燈功率:3.0kw*5支(汞燈)
2、UV燈總長:620mm、弧長:500mm
3、UV波段主波峰:365nm
4、接觸式按鍵控制
5、強弱光強調節:100%
6、鈑金燈箱安裝進口插片反射器和光學鏡片
7、UV燈高度手動調節
8、采用上排風系統
9、產品通道:出口安裝光感應開關
10、輸送材料:不銹鋼長銷軸鏈條(銷長:5mm)
11、輸送寬度:50~450mm
12、輸送速度:0~2m/min(變頻器調速)
13、入口高度:上下空間100mm
14、電源:380AVC 50HZ
15、安裝漏電開關
16、電腦噴塑:顏色(東亞升電腦灰色)

Technical Parameters:
1, UV lamp power: 3.0kw * 5 (mercury lamp)
2, the total length of the UV lamp: 620mm, arc length: 500mm
3, UV band main peak: 365nm
4, contact button control
5, strong and weak light intensity adjustment: 100%
6, sheet metal light box installation of imported insert reflector and optical lens
7, UV lamp height manual adjustment
8, using the upper exhaust system
9, product channel: export installation optical sensor switch
10, conveying materials: stainless steel long pin chain (pin length: 5mm)
11, conveying width: 50~450mm
12, conveying speed: 0~2m/min (inverter speed regulation)
13, the entrance height: up and down space 100mm
14, power: 380AVC 50HZ
15, install the leakage switch
16, computer spray: color (East Asia rose computer gray)

主要用途：
廣泛用于UV光固油墨上光產品烘干固化，電路板油墨固化，uv油漆固化，以及多方面產品的應用粘貼快速固化。

性能特點
1．瞬間干燥，生產效率高。
2．干燥后能使印件表面達到高硬度、高光澤，耐磨擦、耐溶劑的效果。
3．傳動采用輥軸傳送，變頻無級調速。
4．輸送帶防偏移，保證輸送順暢。
5．選用優質高效燈管，燈室強制式排熱，延長燈管壽命，保護干燥物品不會受熱變形。
6．箱體表面全噴塑處理，美觀大方，耐腐蝕。
該機造型新穎，結構合理，有效工作面積大，功能全，操作簡單，維修調方便，噪音小，可靠性高，成本低，能耗少，生產效率高。

The main purpose:
Widely used in UV light-solid ink glazing products drying and curing, circuit board ink curing, uv paint curing, and multi-faceted application paste fast

curing.

Performance characteristics
1. Instant drying and high production efficiency.
2. After drying, the surface of the printing material can achieve high hardness, high gloss, abrasion resistance and solvent resistance.
3. The drive adopts roller shaft transmission and variable frequency stepless speed regulation.
4. The conveyor belt is anti-offset to ensure smooth delivery.
5. The high-quality and high-efficiency lamp tube is used, and the lamp room is forced to exhaust heat to extend the life of the lamp tube and protect the

dry items from heat deformation.
6. The surface of the box is completely sprayed, beautiful and corrosion resistant.
The machine has novel shape, reasonable structure, large effective working area, complete functions, simple operation, convenient maintenance, low noise,

high reliability, low cost, low energy consumption and high production efficiency.
